Description
1. Temperature measurement standard deviation is 0.2mK, with a long-term drift of less than 1 mK over a 24-hour period.
2. Temperature control stability ranges from ±0.001 to ±0.01°C.（which varies depending on the controlled object and parameters. This level of precision can meet the stringent requirements of most scenarios, including the demanding temperature control needs of semiconductor laser devices.）
3. Users have the option to select either bipolar or unipolar output modes.
4. The ability to limit the maximum rate of temperature change is available.
5. Supports the use of Negative Temperature Coefficient (NTC) thermistor temperature sensors.
6. Capable of handling high-power outputs, with support for up to 24V and 15A per channel.
7. Equipped with a circuit board overheat protection feature, ensuring reliable performance.
8. Comes with a screen display control module allowing for direct parameter setup, with power-loss memory for set data, making it convenient for production line workers.
9. Offers a full suite of serial port control commands, providing an open-platform solution.
10. Giving away computer software.
Instructional Video

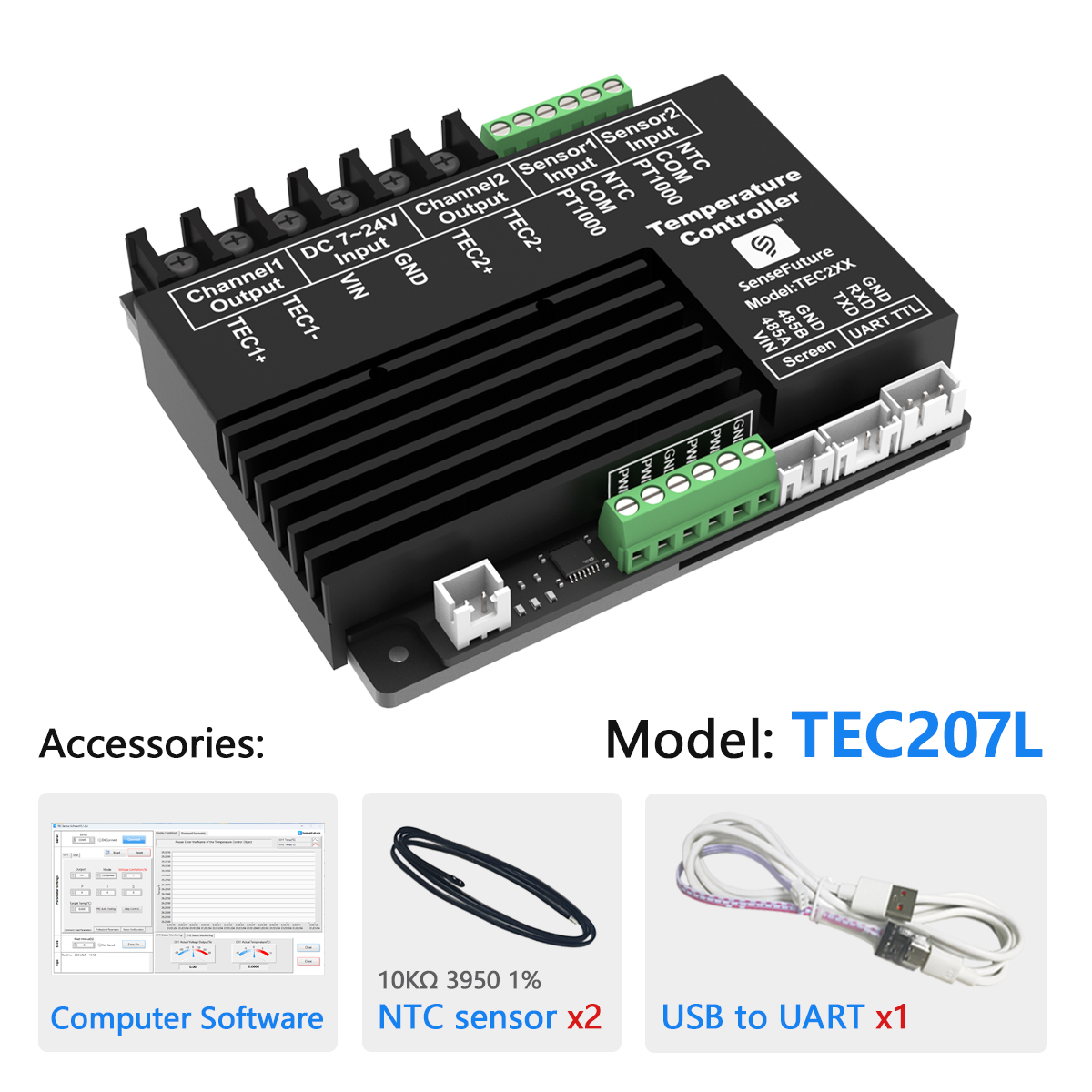

SPECIFICATIONS（TEC207/215）
|
PARAMETER |
MODEL |
UNIT |
|||
|
TEC207L |
TEC207 |
TEC215L |
TEC215 |
||
|
Supports Sensors |
NTC PT1000/PT100 |
|
|||
|
Measurable Temperature Range |
-200~800 |
°C |
|||
|
Temperature Sensitivity |
0.001 |
0.0001 |
0.001 |
0.0001 |
°C |
|
Temperature Measurement Drift Caused by Ambient Temperature |
0.0001 |
°C/°C |
|||
|
Optimal Temperature Control Stability (related to the overall system) |
±0.01 |
±0.001 |
±0.01 |
±0.001 |
°C |
|
Communication Method |
485 Serial Port (supports Modbus and ASCII communication protocols) |
|
|||
|
Power Supply Voltage Range (DC) |
7~24 |
V |
|||
|
Output Polarity |
Bipolar、Unipolar |
|
|||
|
Number of Channels |
2 |
|
|||
|
Maximum Output Voltage |
Settable |
|
|||
|
Output Current Range (SSR: Solid State Relay) |
±7A each channel |
±15A each channel 0-±80A/SSR |
A |
||
|
Output Current Limit |
±10A |
±20A |
A |
||
|
Operating Ambient Temperature |
-55~60 |
°C |
|||
|
Operating Ambient Humidity |
0~98 |
%RH |
|||
|
Thermal Dissipation Requirements |
No Additional Thermal Dissipation Needed Within Rated Operating Range |
|
|||
|
Circuit Board Overheat Protection |
Yes |
|
|||
|
Power Loss Memory |
Yes |
|
|||
|
PID Parameters |
User Adjustable |
|
|||
|
Dimension |
94.3*79.5*20.5 |
mm |
|||
|
Weight |
≈240 |
g |
|||
Dimensional Drawing
。
Interfaces
|
Pin Name |
Pin Type |
Pin Definition (High Level: 3.3V, Low Level: 0V) |
|
|
① |
ENABLE |
Input |
Thermostat Enable Terminal. High Level: The thermostat can output normally; Low Level: The thermostat is not allowed to output. |
|
STATE |
Output |
Thermostat Overtemperature Alarm Signal Output. High Level: (1) The thermostat's own temperature is greater than its overtemperature threshold; (2) The temperature of sensor 1 or 2 exceeds their respective high and low threshold ranges. Low Level: No overtemperature anomaly. |
|
|
GND |
Input |
Power Supply Input Negative (Low Current) |
|
|
② |
VIN |
Input |
Power Supply Input Positive (Low Current). |
|
485A |
Output |
RS485 Signal Line A. Data Bits: 8 bits, Stop Bits: 1 bit, Parity: None, Baud Rate: 9600. |
|
|
485B |
Output |
RS485 Signal Line B. Data Bits: 8 bits, Stop Bits: 1 bit, Parity: None, Baud Rate: 9600. |
|
|
GND |
Input |
Power Supply Input Negative (Low Current). |
|
|
③ |
TXD |
Output |
Serial Port Transmitter, TTL Level, used for connecting to PC control software. Data Bits: 8, Stop Bit: 1, Parity: None, Baud Rate: 38400. |
|
RXD |
Input |
Serial Port Receiver, TTL Level, used for connecting to PC control software. Data Bits: 8, Stop Bit: 1, Parity: None, Baud Rate: 38400. |
|
|
GND |
Input |
Power Supply Input Negative (Low Current). |
|
|
④ |
TEC1+ |
Output |
The positive terminal of the temperature control current output is typically connected to the positive terminal of the Thermoelectric Cooler (TEC). |
|
TEC1- |
Output |
The negative terminal of the temperature control current output is usually connected to the negative terminal of the Thermoelectric Cooler (TEC). |
|
|
⑤ |
VIN |
Input |
Power Input Positive Pole, with an input voltage range of 7 to 24V. |
|
GND |
Input |
Power Supply Input Negative (High Current). |
|
|
⑥ |
TEC2+ |
Output |
The positive terminal of the temperature control current output is typically connected to the positive terminal of the Thermoelectric Cooler (TEC). |
|
TEC2- |
Output |
The negative terminal of the temperature control current output is usually connected to the negative terminal of the Thermoelectric Cooler (TEC). |
|
|
⑦ |
1k |
Input |
Platinum Resistance Thermometer (Pt1000) Interface (Please contact Technical Support before purchase). |
|
COM |
Input |
Common Interface for Platinum Resistance Thermometer (Pt1000) and NTC Thermistor. |
|
|
10k |
Input |
Thermistor (NTC) Interface. |
|
|
⑧ |
1k |
Input |
Platinum Resistance Thermometer (Pt1000) Interface (Please contact Technical Support before purchase). |
|
COM |
Input |
Common Interface for Platinum Resistance Thermometer (Pt1000) and NTC Thermistor. |
|
|
10k |
Input |
Thermistor (NTC) Interface. |
|
|
⑨ |
PWM1 |
Output |
Solid State Relay Input Terminal 1 |
|
PWM2 |
Output |
Solid State Relay Input Terminal 2 |
|
|
GND |
Input |
Power Supply Input Negative (Low Current) |
|
|
PWM3 |
Output |
Solid State Relay Input Terminal 3 |
|
|
PWM4 |
Output |
Solid State Relay Input Terminal 4 |
|
|
GND |
Input |
Power Supply Input Negative (Low Current) |
|
|
⑩ |
VCC |
Output |
Buzzer Alarm Positive. Outputs high level when there is an error in temperature control. |
|
GND |
Output |
Buzzer Alarm Negative. |
SELECTION GUIDE
|
MODEL |
STABILITY (℃)@20℃ |
SUPPORTED SENSOR TYPES |
CHANNELS |
DRIVING CAPACITY @24V |
POWER SUPPLY VOLTAGE(V) |
DIMENSION (mm) |
FEATURES |
|
±0.01 |
NTC |
1 |
±3A |
7-24 |
46.5*39.0*14.8 |
Small-sized |
|
|
±0.001 |
|||||||
|
±0.01 |
NTC PT1000 |
2 |
±7A |
94.3*79.5*20.5 |
Capable of driving solid-state relays and thyristors |
||
|
±0.001 |
|||||||
|
±0.01 |
±15A |
||||||
|
±0.001 |
|||||||
|
±0.001 |
NTC PT1000 CCR Low Temperature Resistor |
Capable of driving solid-state relays and thyristors with resistor temperature calibration function |
