Thermoelectric Cooler

The Thermoelectric Cooler (TEC), also known as a Peltier Module, is an advanced semiconductor-based electronic component designed to provide precise temperature control. Utilizing the Peltier effect, this device can efficiently cool or heat by transferring heat from one side to the other when electrical current flows through it. Our TEC series offers high performance, reliability, and long-lasting operation, making it ideal for a wide range of applications.

$30.00

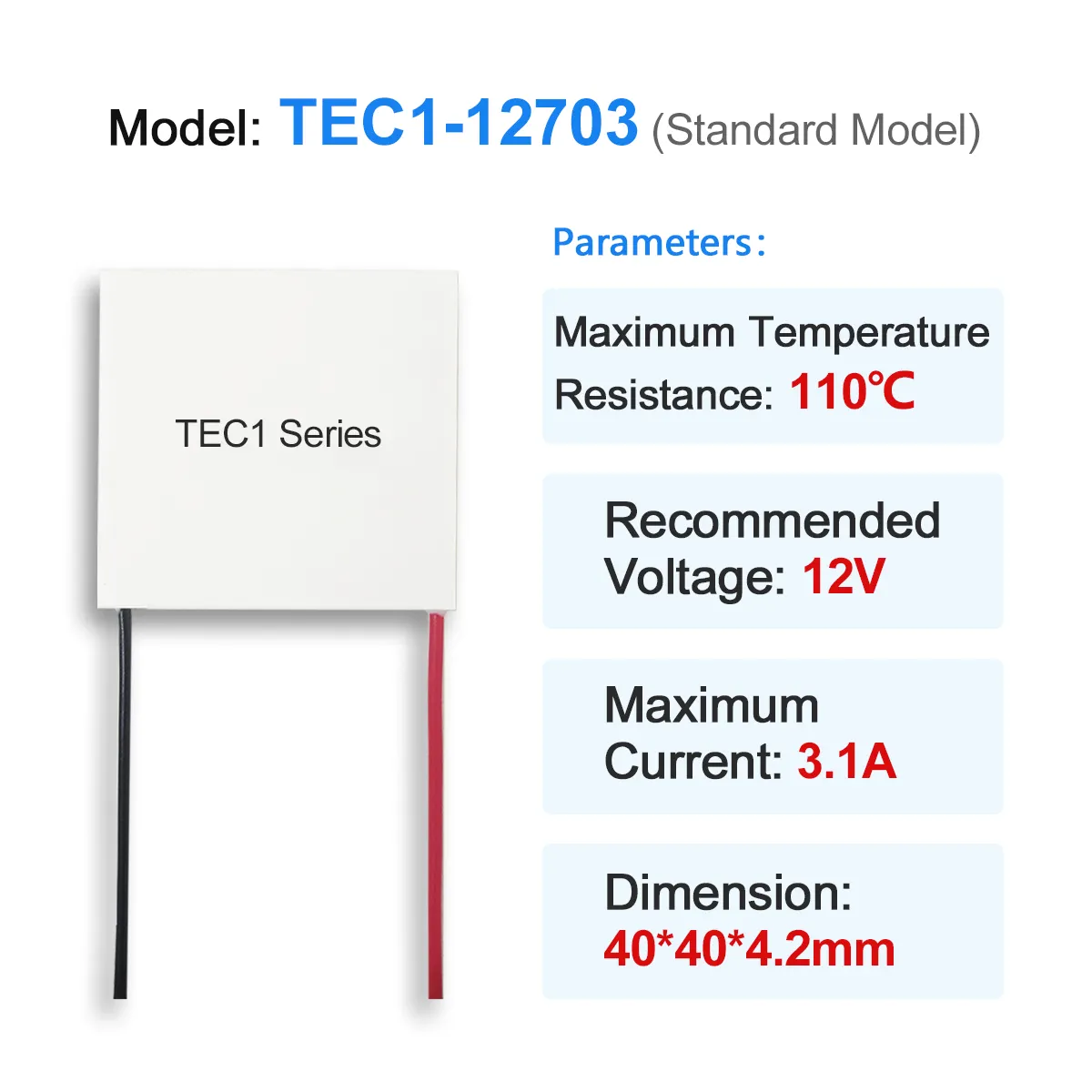

Model:  TEC1-12703
Quantity

Description

Parameter

TEC1-12703

(Standard Model)

TEC1-12706

(Standard Model)

TEC1-12708

(Standard Model)

TEC1-12706-S

Upgrade Model)

TEC1-12708-S

Upgrade Model)

TEC1-19912-S

Upgrade Model)

Recommended Operating Voltage

12V

12V

12V

12V

12V

12V

Maximum Operating Current

3.1A

6.1A

8.5A

6.1A

8.5A

12.7A

Dimensions

40*40*4.2mm

40*40*3.8mm

40*40*3.45mm

40*40*3.8mm

40*40*3.45mm

40*44*3.2mm

Maximum Operating Temperature for Hot Side

110℃

110℃

110℃

230℃

230℃

230℃
